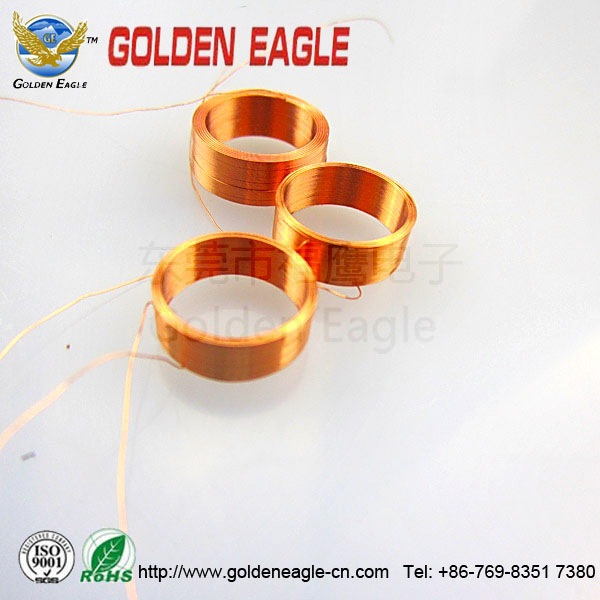

The inductance coil winding machine: as the name suggests windingmachine is the linear objects to specific parts of the winding machine.
Using a range of winding machine:
All electrical appliances product most need of enamelled copper wire(referred to as the enameled wire wound into a coil inductance), we need to use the winding machine.
For example: all kinds of motor, various sizes of fluorescent lamp ballast,transformer, tv. In the week, inductance coil with the radio, line output transformer (high voltage), electronic ignition, mosquito killer on the high voltage coil, voice coil loudspeaker, Headset, microphone, etc. various kinds of electric welding machine coil not one one examples, theserequire winding machine around.
The textile industry use cotton yarn, synthetic fiber line winding varioussuitable for textile machine yarn group, split these are required by awinding machine winding.
Types of winding machine:
The common winding machine winding line is enamelled copper wire(inductance coil winding electronic, electrical products), textile line(winding yarn spindle for textile machine, coil), and the winding electric heating appliance with electric heating wire and solder wire, electric wire,cable etc..
Types of winding machine is various, according to the classification of thepurposes, can be divided into general type and the special type;
Universal -- by 1 or a plurality of wire is suitable for the installation of various frame winding machine winding. General paint common wirewinding machine is provided with 1 circular; root axis is called "single head machine", from the "double stack machine" 3 head machine "..." 6head machine".
Special type -- is equipped with a fixed special winding chuck, winding machine only winding a coil; special winding machine are common;
A square, winding of transformer transformer special machine;
1, the square dedicated transformer - (thick line dedicated machine, wiremachine)
2, annular transformer special - (big ring machine, central machine, smallmachine)
3, other types of special transformer
Two, special machine motor coil winding:
1, the fan motor dedicated machine (seat fan, ceiling fan, fan)
2, toys, micro motor (special machine; flying fork, special winding type)
3, series excitation type rotor coil for machine (power tools)
4, fractional horsepower motor, and high horsepower motor special machine.
Three, inductance coil winding machine
1, in the weeks and color code inductance special machine
2, small magnetic inductance coil special machine
3, sound frequency coil special machine
4, the fluorescent lamp (electronic energy saving lamp ballast) special machine
Four, other special winding machine speaker voice coil winding machine
1, special loudspeaker voice coil machine
2, the electric heating tube special machine
3, insulation tape wrapping machine
4, textile yarn spindle special machine
Winding machine according to the degree of automation can be divided into simple type, automatic type, automatic type. Electronic control mode with NC type microcomputer single chip microcomputer and IBM computercontrol. According to installation classification for desktop and floor typemachine.
