A unit of inductance conversion:

The 1 inductor unit for Henry, the symbol for the "H"

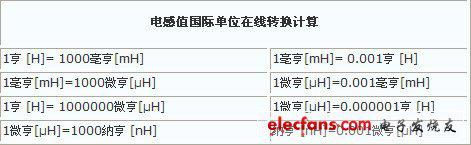

2 inductance conversion: IH=1000mH=1000000uH=1000000000nH=1000000000000pH

Values of the error is + 20%; the code is: m; error value is + 10%; the code is: K; error value is + 1%; the code is: F

4 conversion rules are as follows:

Numerical (AB) * 10m= + inductance error value (10%); numerical (AB) * 10n= inductance error value (5%);

For example: 103K=10*1000=10mH+/-10% 221k=22*10=220UH+/-10%100M=10uH+/-20%

5. The inductance in addition to meet the above translation rules, other code representation method, and because of different manufacturers, the code are not the same, for this kind of resistor conversion shall be provided in accordance with the manufacturers code comparison table to check conversion.
